B1-3

B1-3

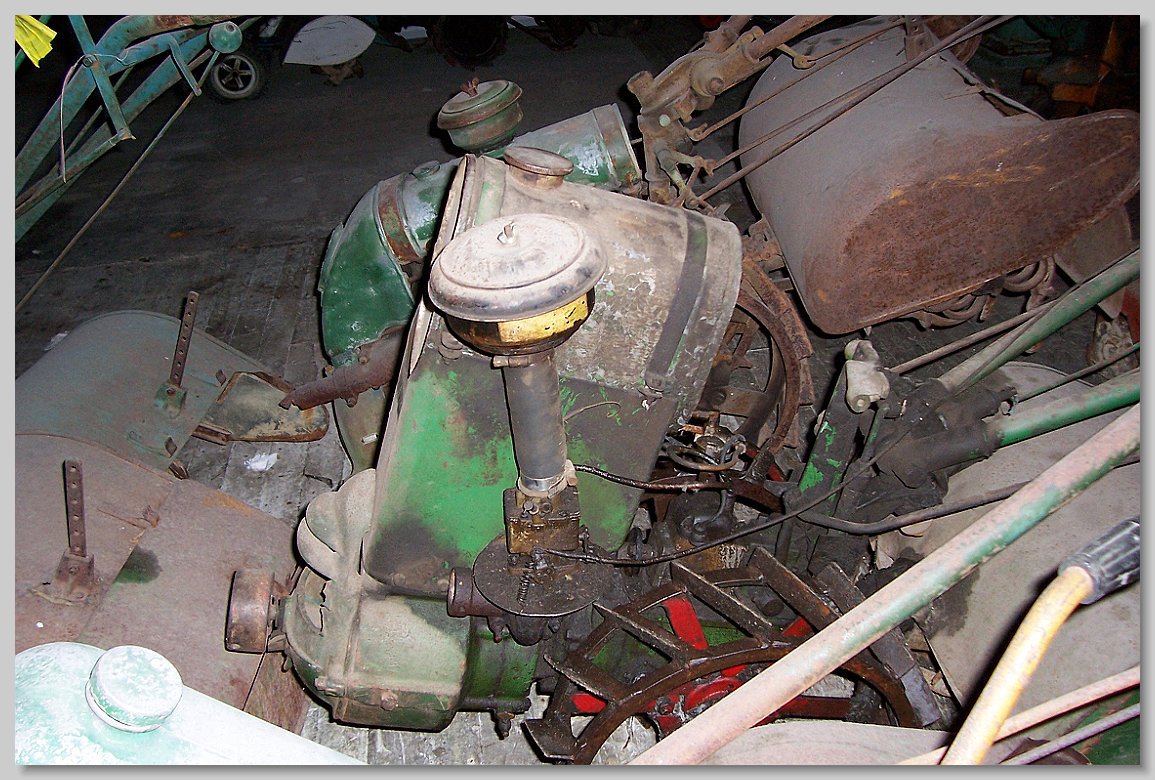

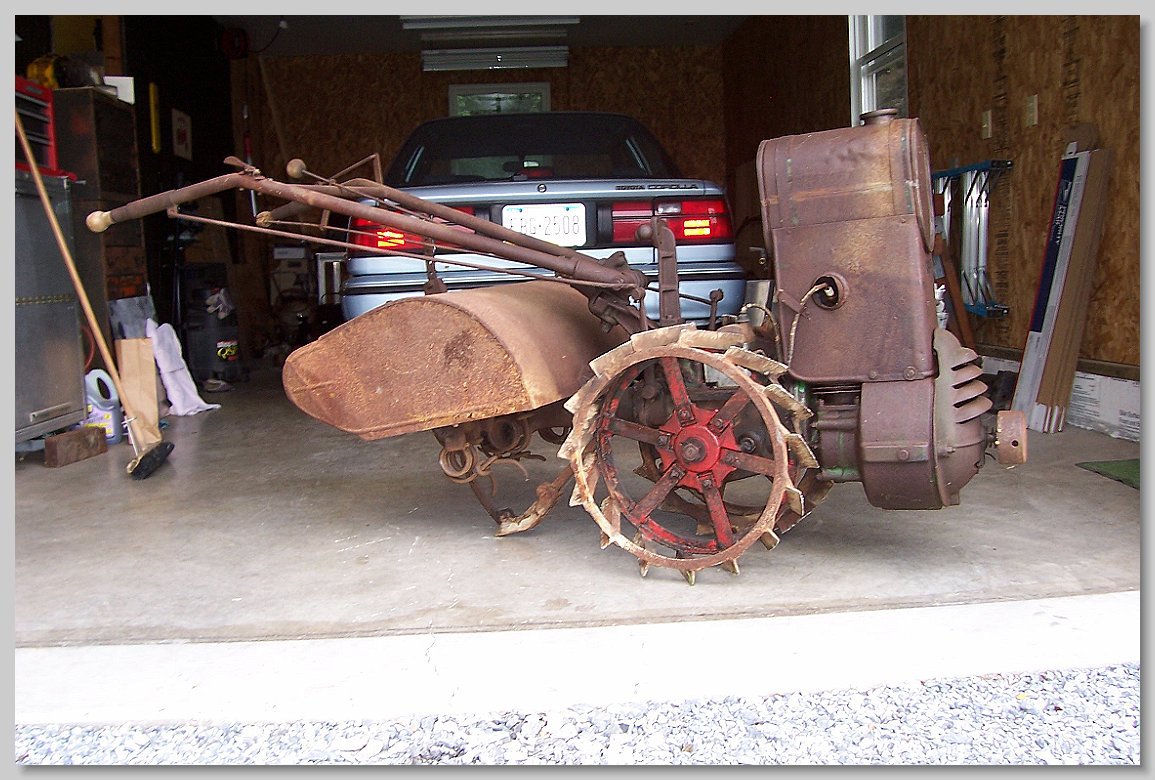

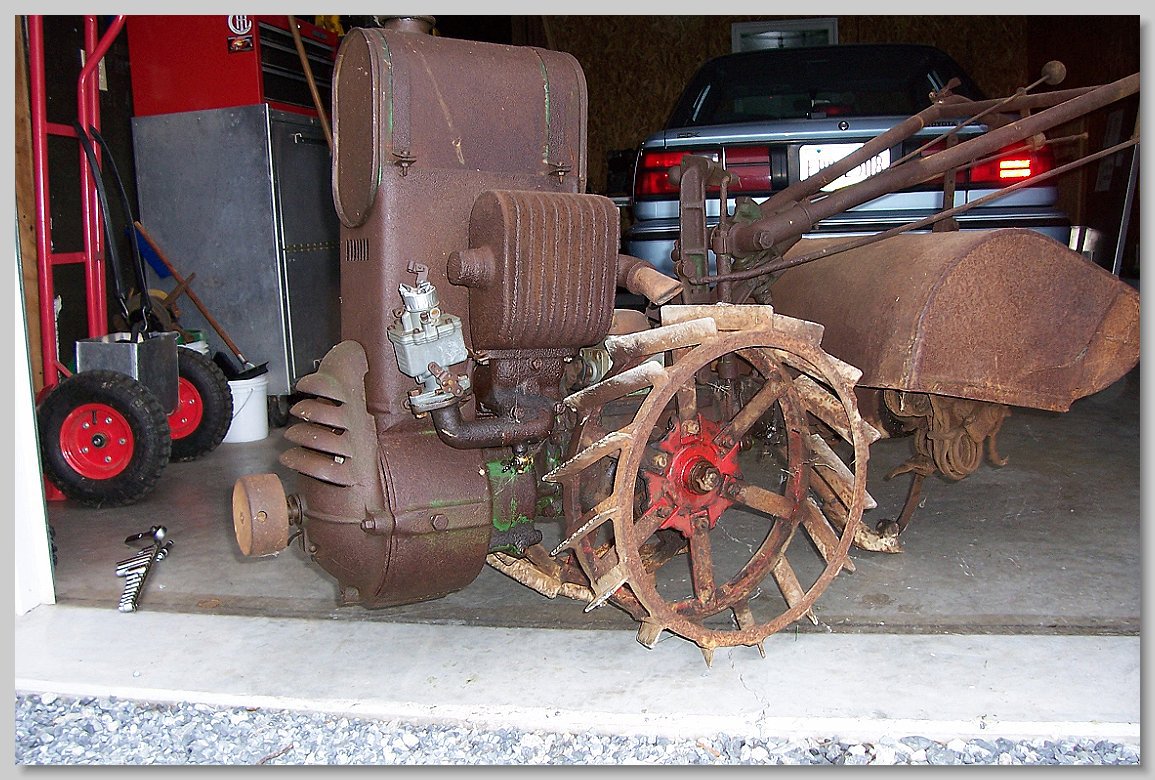

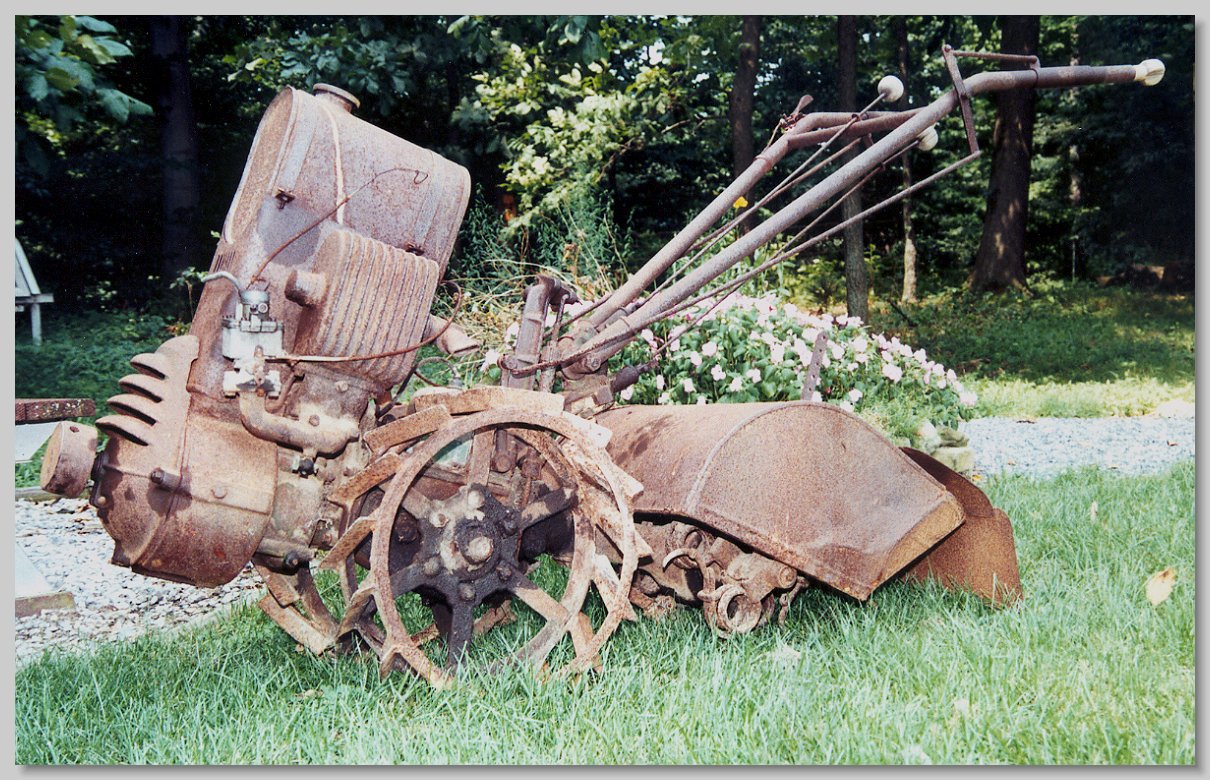

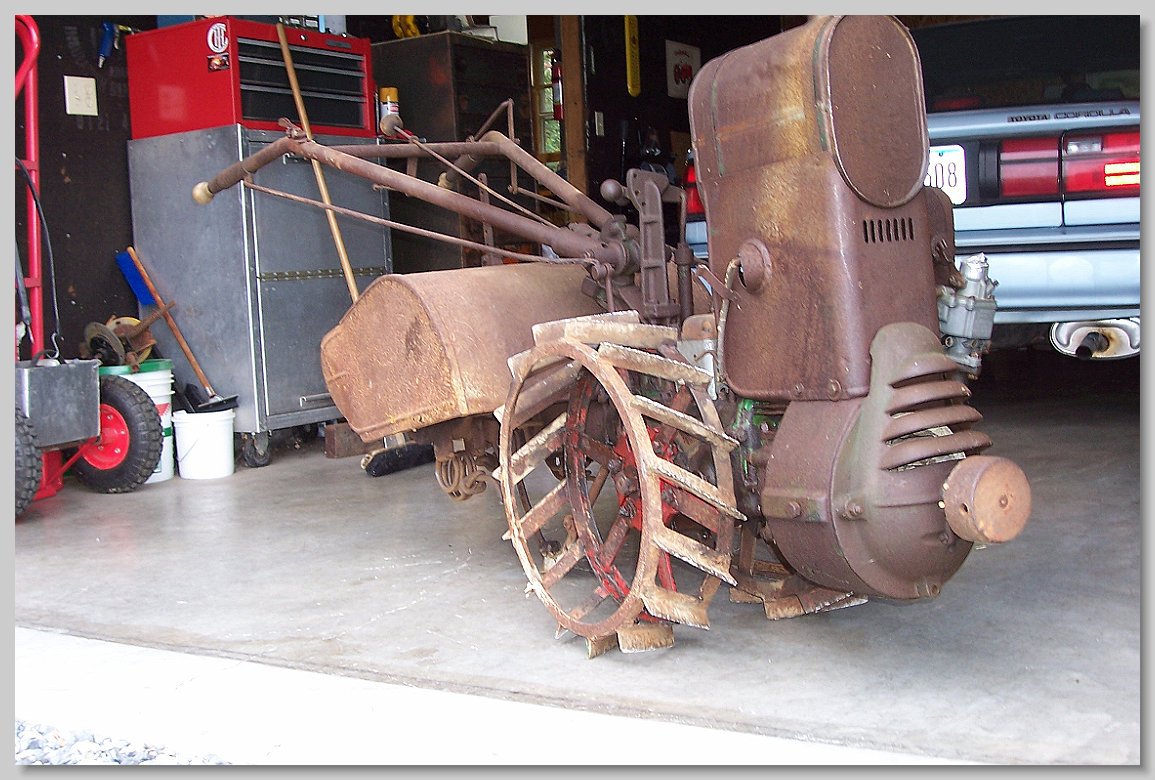

My B1-3 as it looked when I purchased it in 2000.

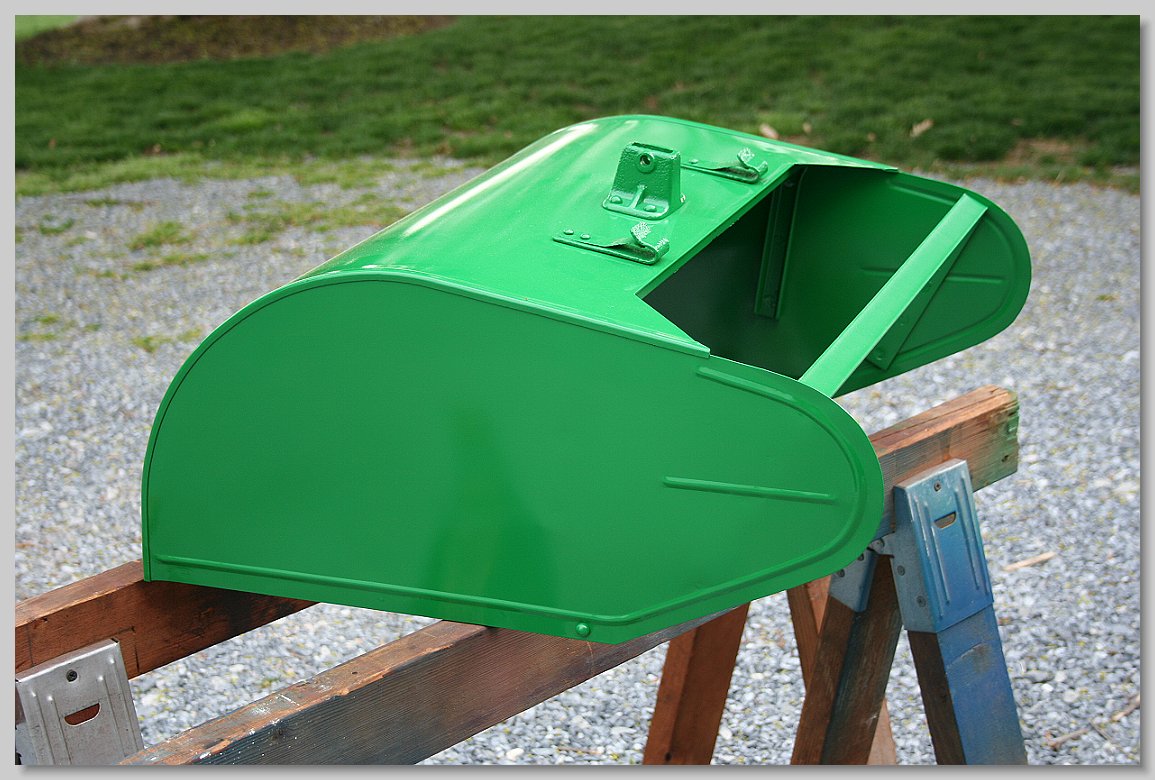

B1-3 tiller hood
New Hood shell by Herb Sheet Metal of Lebanon, PA, inside reinforcing and painting by me.

B1-3

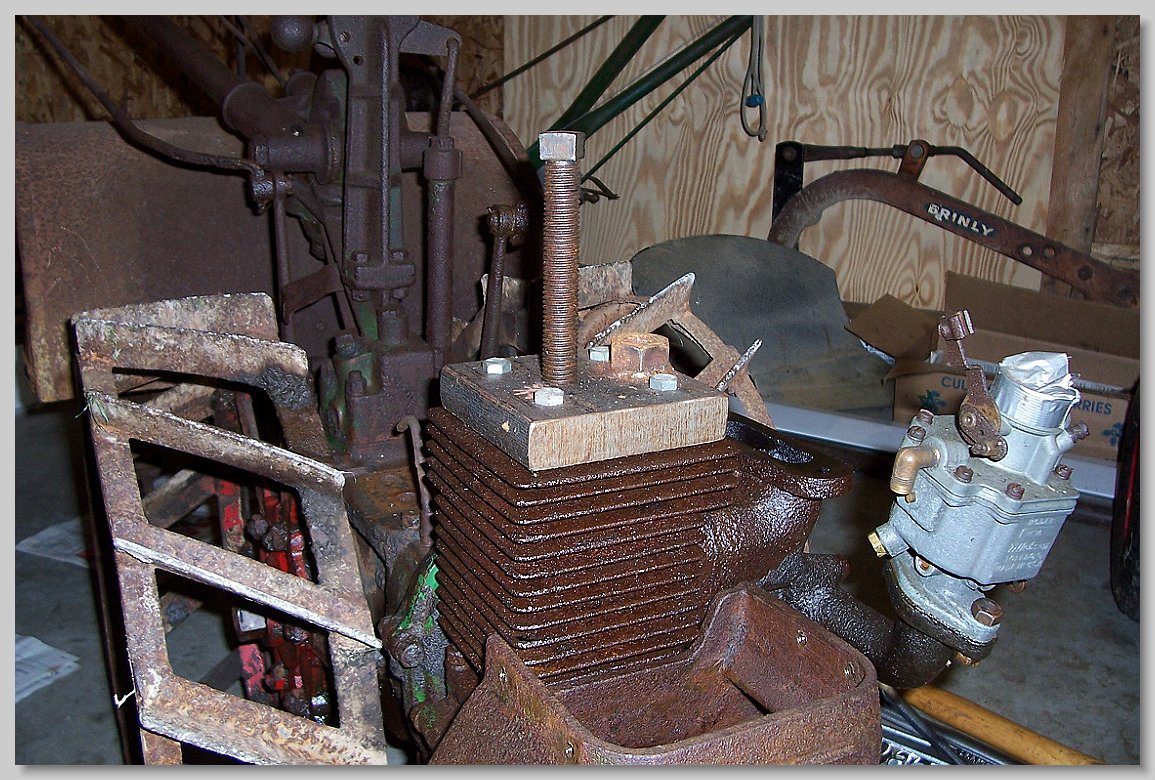

Setup used to put pressure on the piston. I made a fatal mistake of using an impact wrench on the jack bolt.

B1-3 broken cylinder

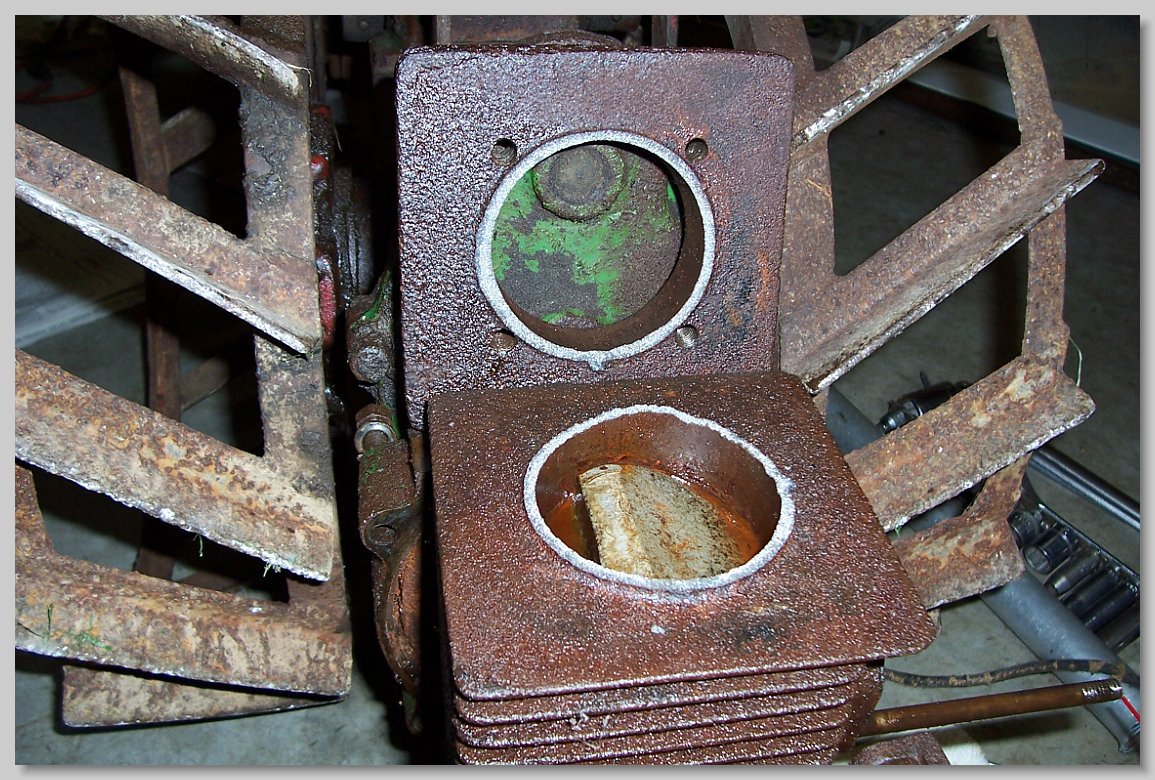

Oops, that can't be good! It took 6 tons of force to remove the piston from the cylinder. I had penetrating oil in the cylinder for more than 6 years. The rust was that bad that the oil never went past the top of the piston.

B1-3

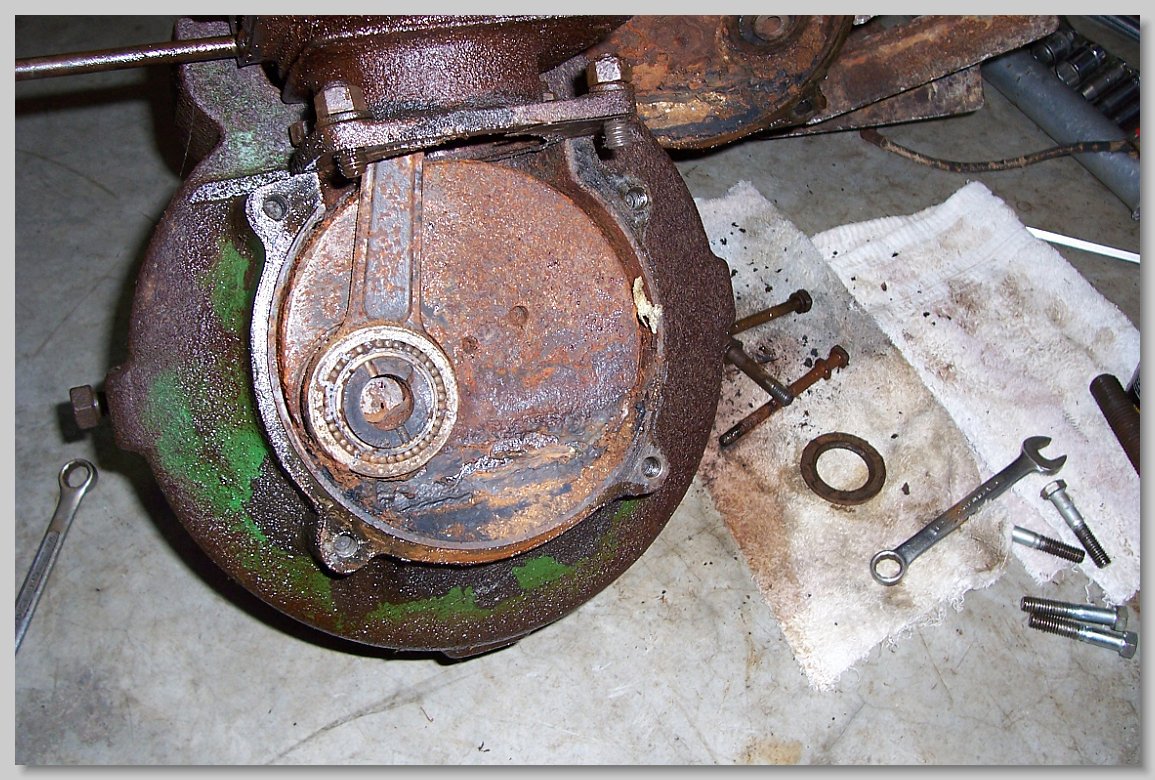

Broken crank pin. Looks like water was in this crankcase for some time.

B1-3

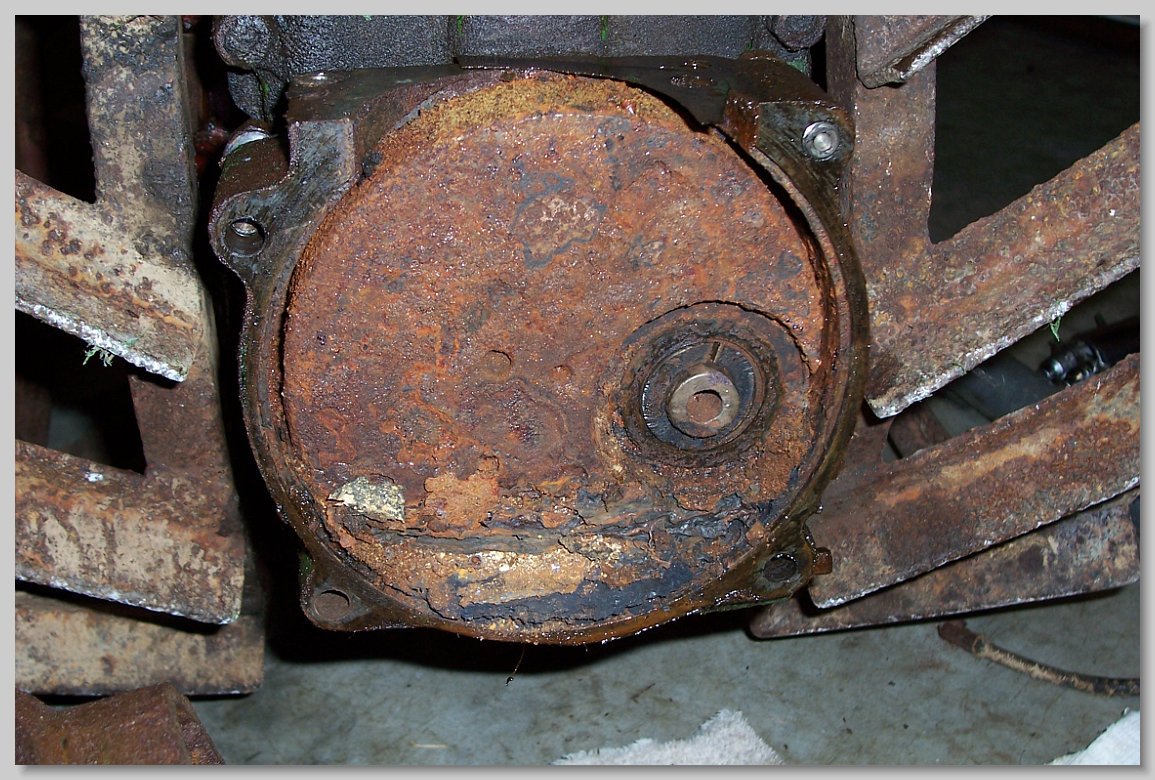

Look at the rust!

B1-3

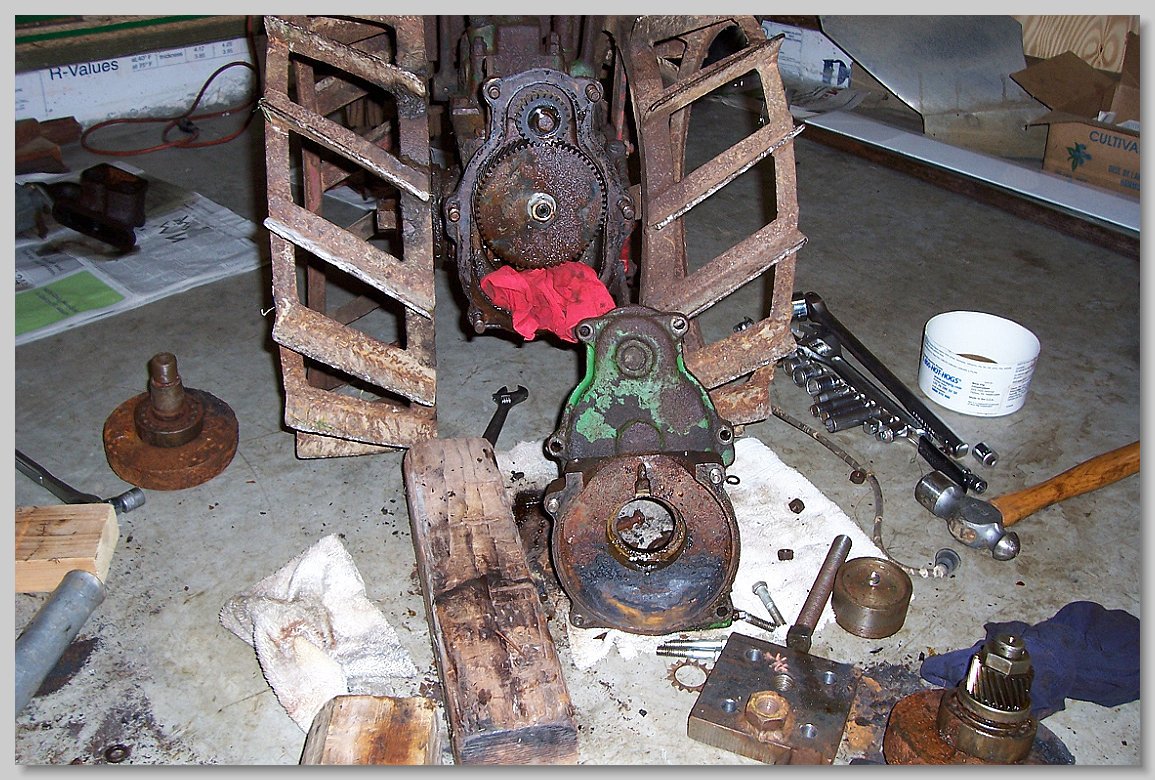

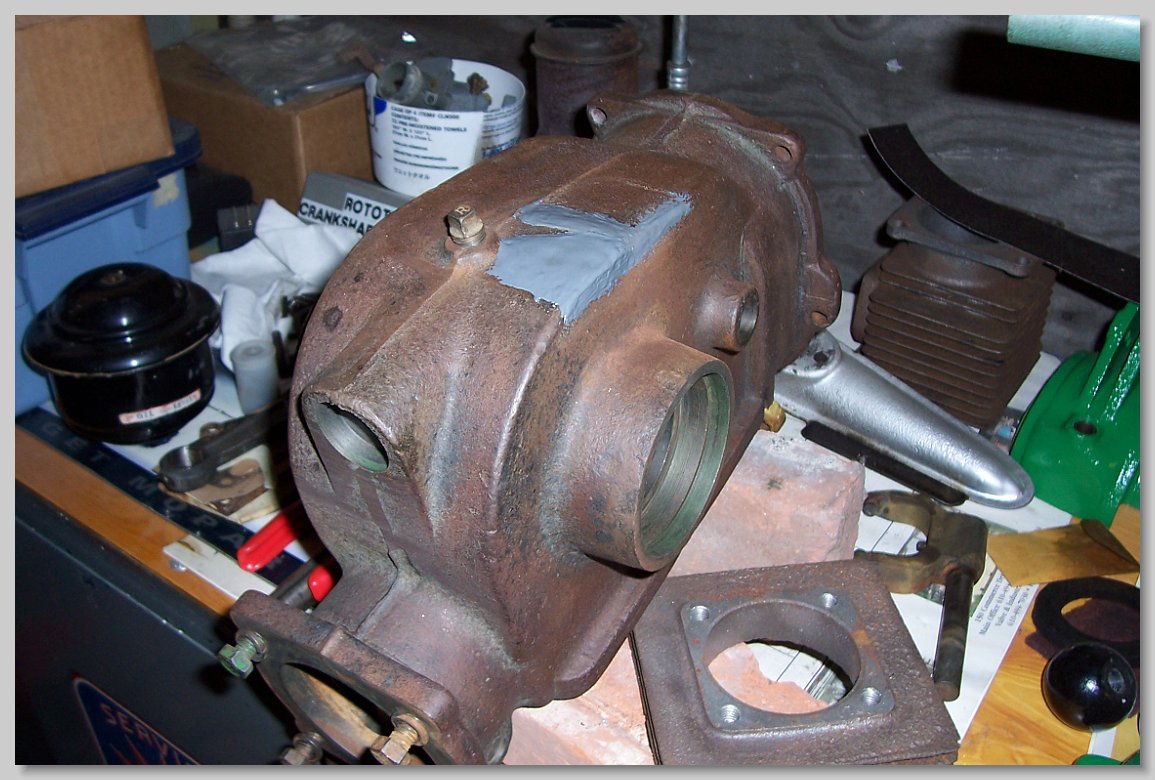

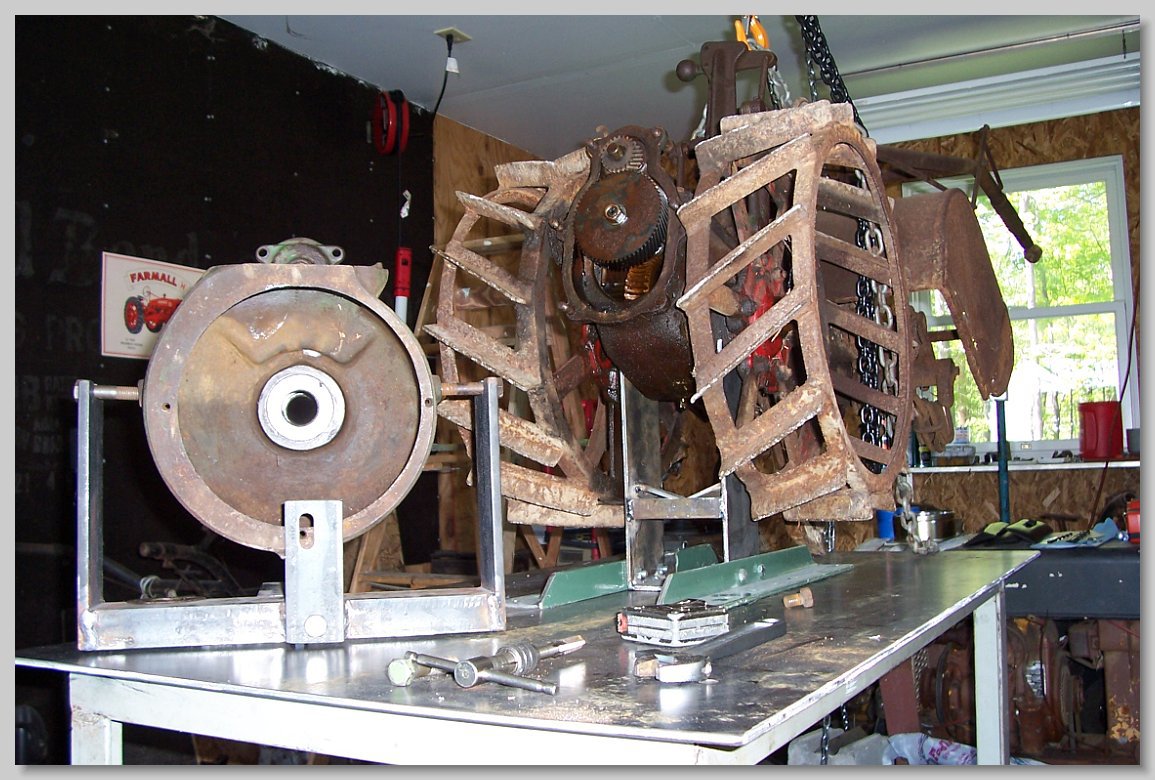

Crankcase removed from transmission.

B1-3 needed parts

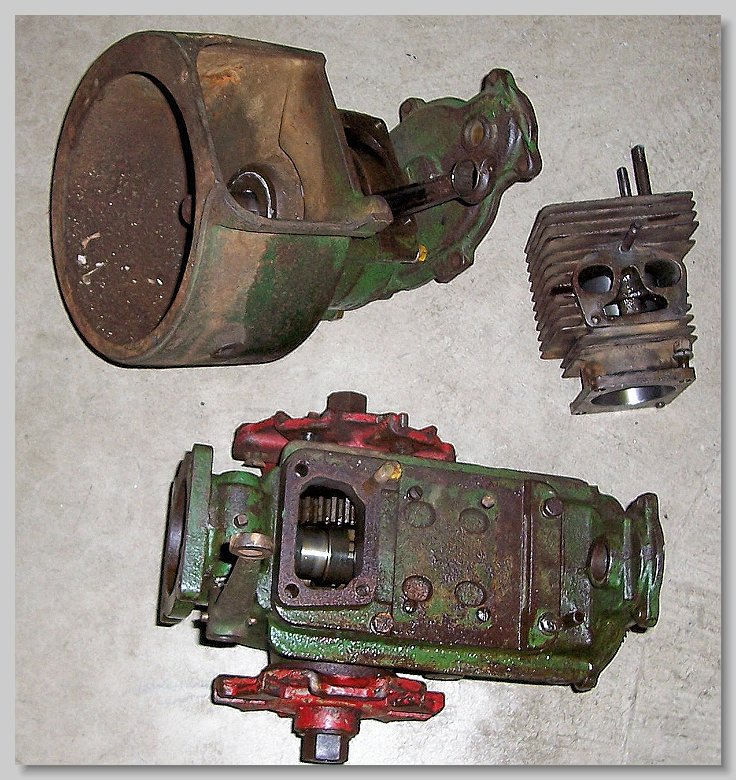

Thanks to Les Miller for desperately needed parts!

B1-3

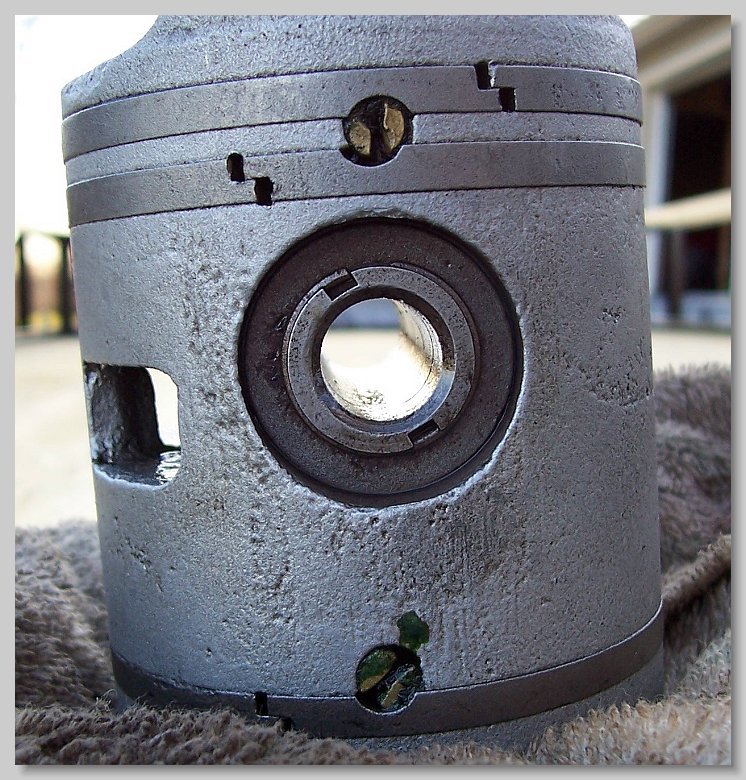

B1-3 piston with rings

B1-3

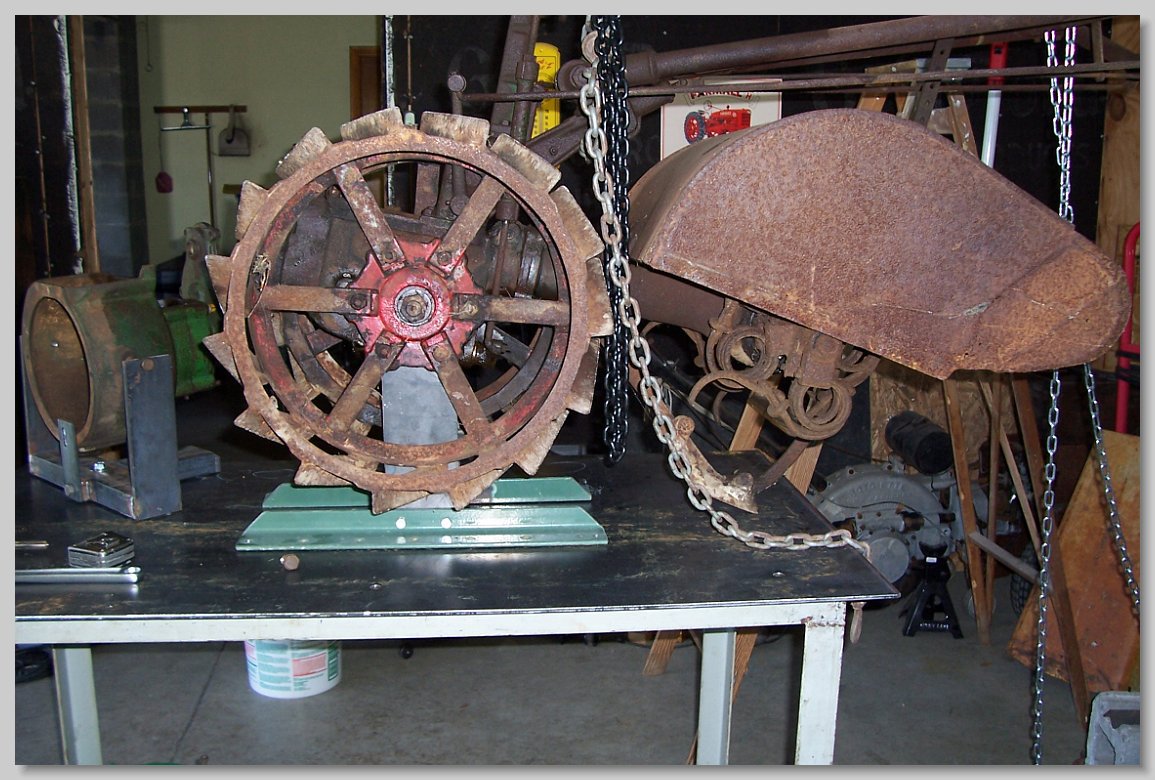

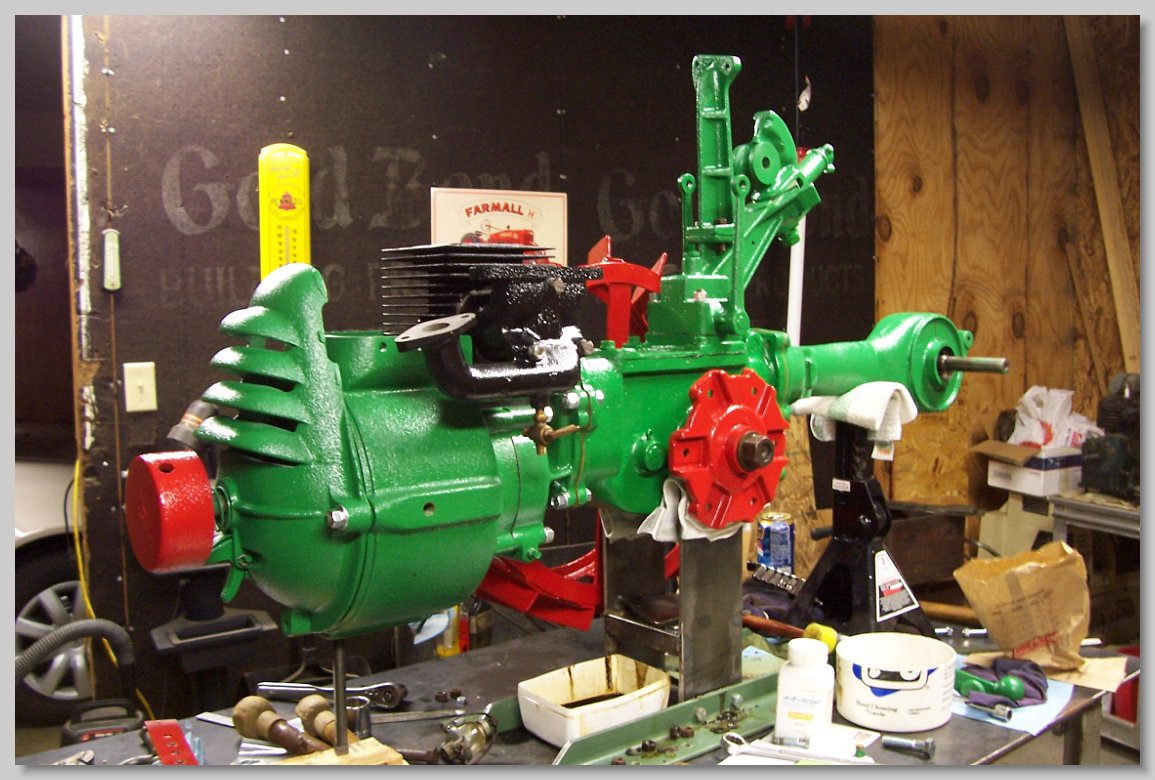

My B1-3 on the table.

B1-3

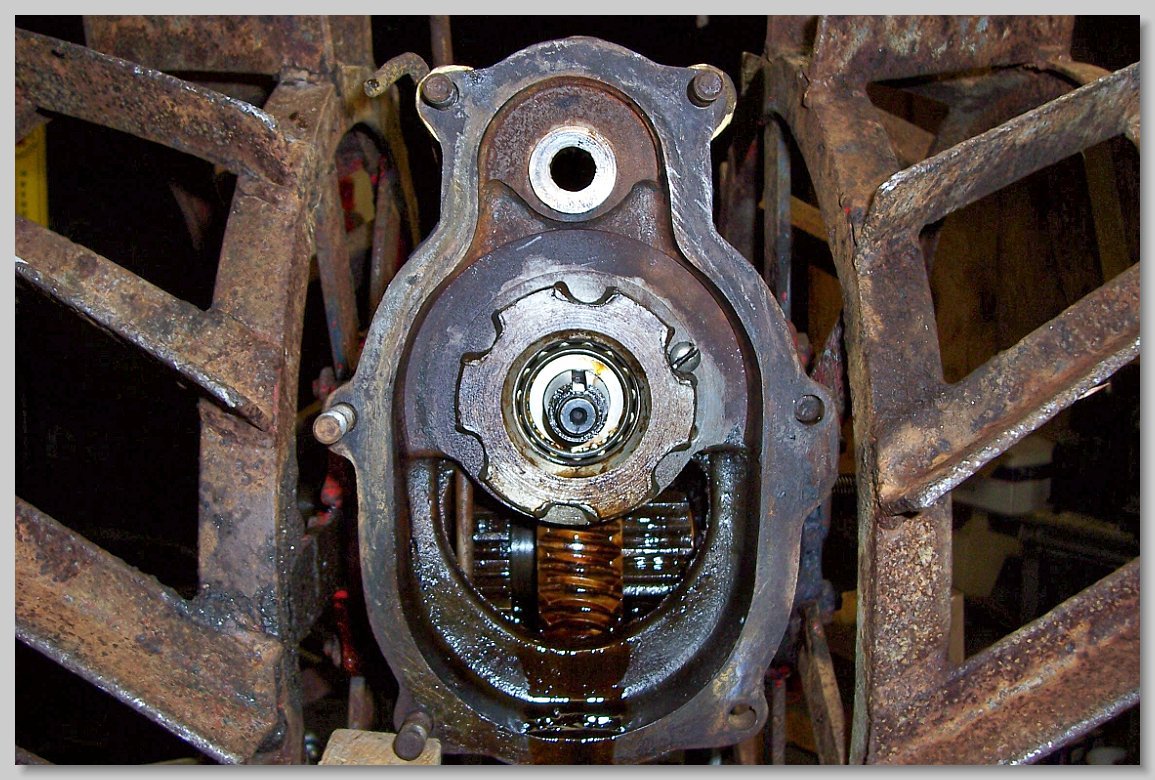

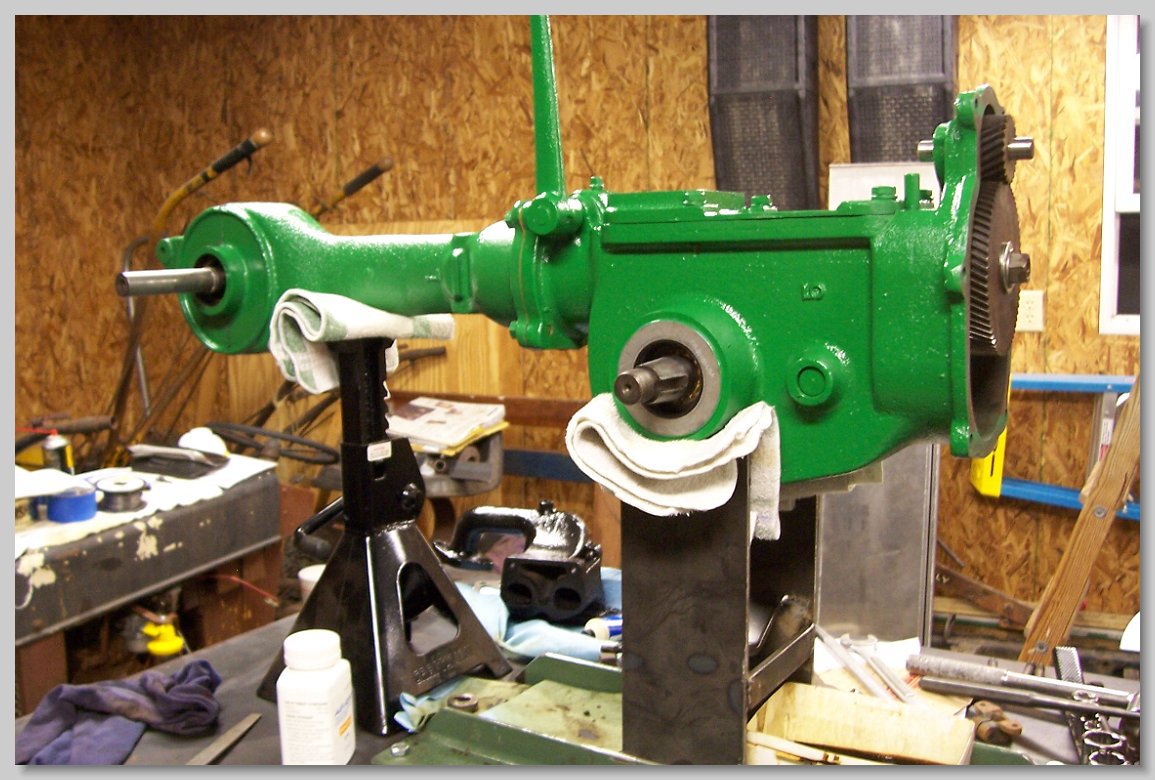

Note the adjustment nut to set endplay on the main shaft.

B1-3 transmission
I went over a previous repair.

B1-3

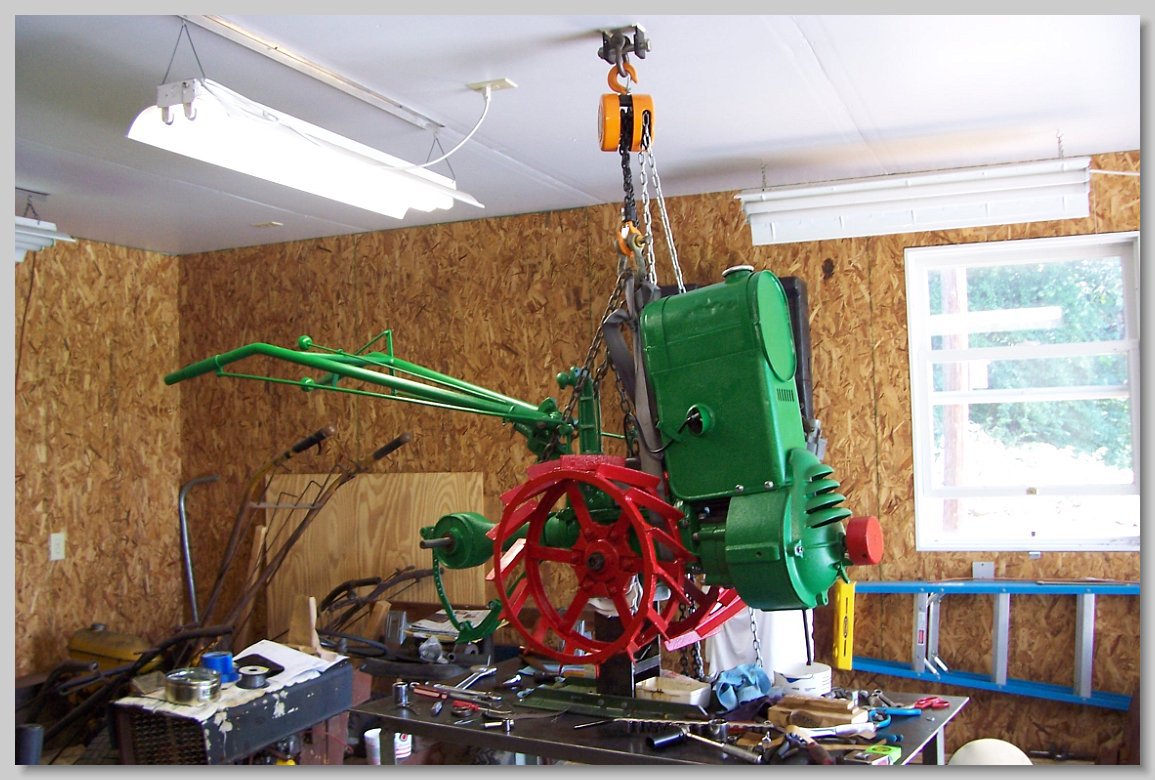

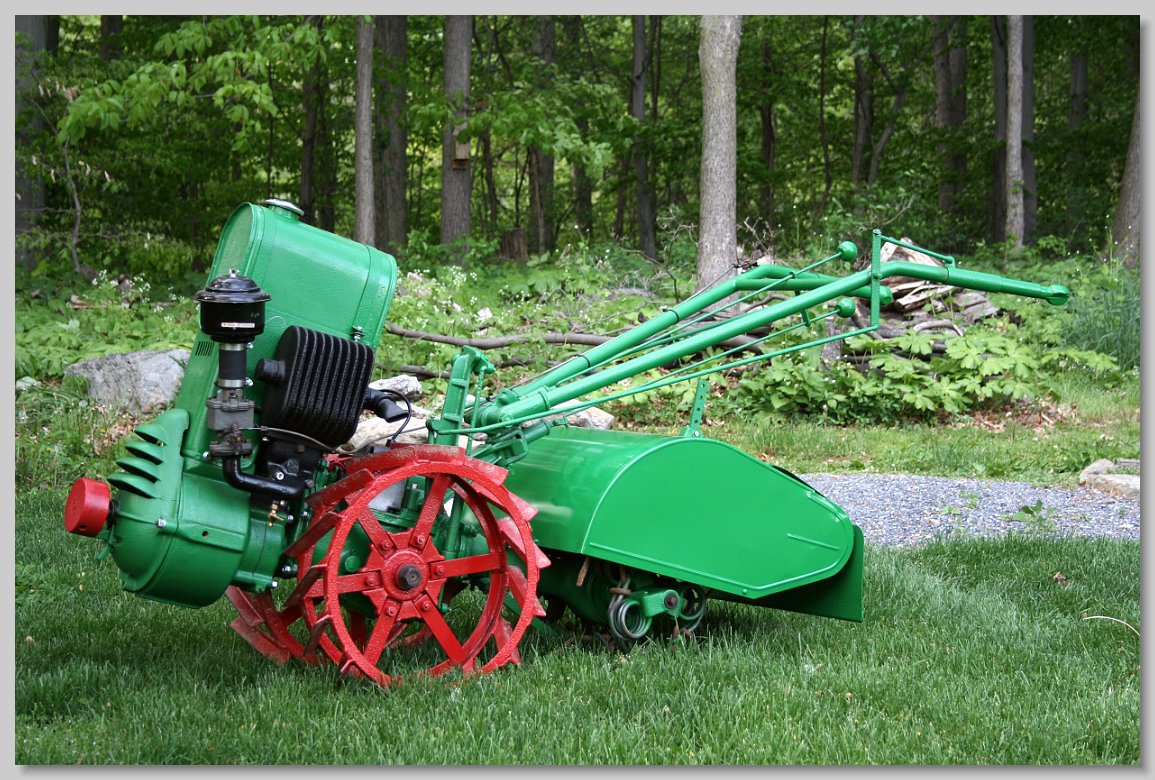

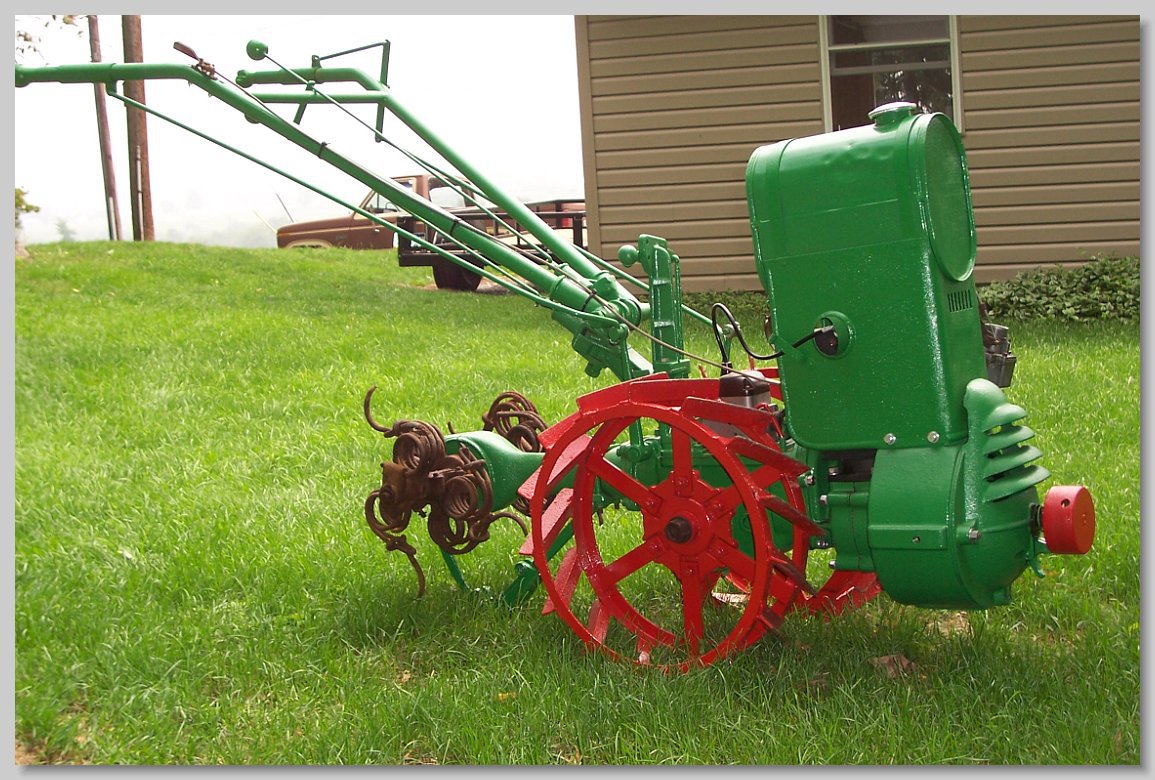

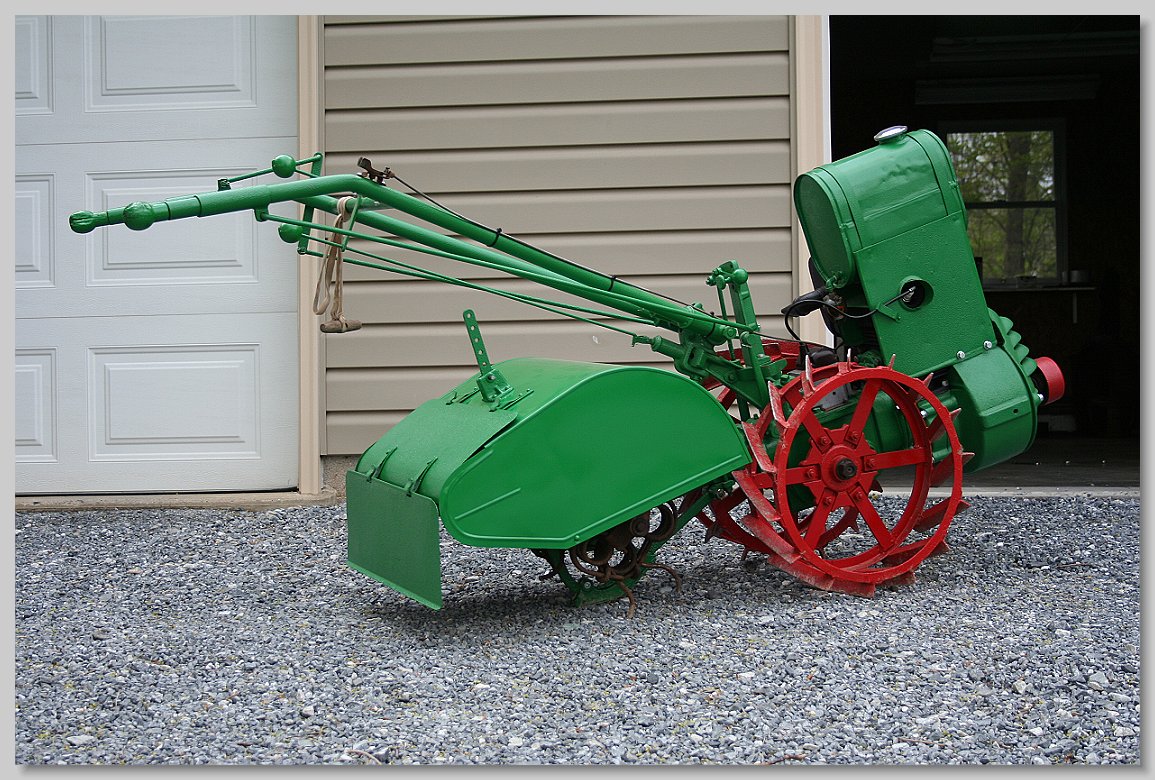

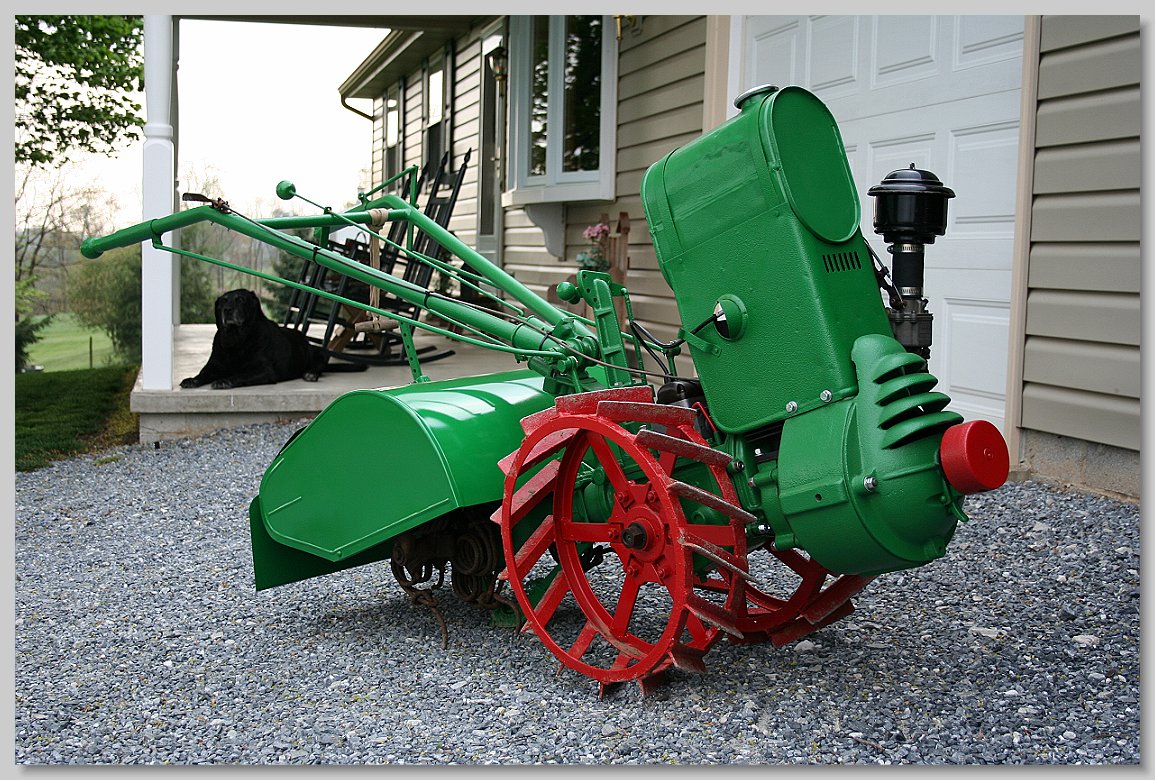

Finally, ready to come off the repair table.

B1-3

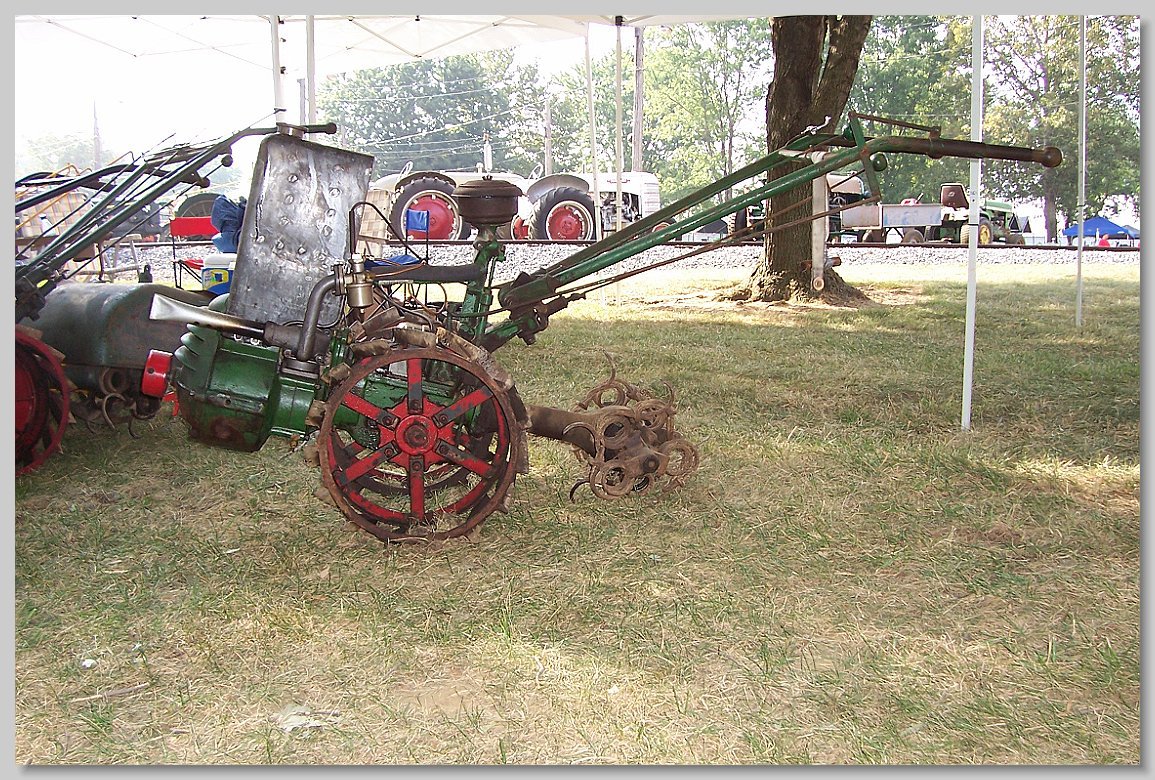

Later B1-3 with Tillotson carburetor, but different manifold and muffler.

B1-3
Early B1-3 with Amal carburetor

B1-3
Early B1-3 with Tillotson carburetor.
